Page 147 - Fimex Taiwan Ltd_Electrical Material-American

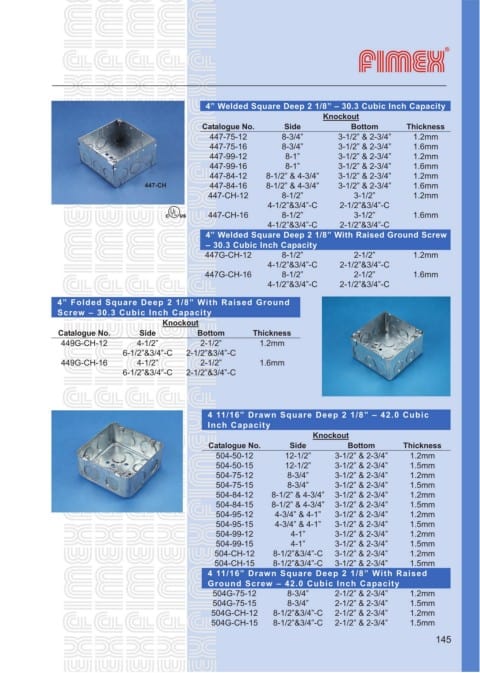

4” Welded Square Deep 2 1/8” – 30.3 Cubic Inch Capacity
Knockout
Catalogue No. Side Bottom Thickness
447-75-12 8-3/4” 3-1/2” & 2-3/4” 1.2mm
447-75-16 8-3/4” 3-1/2” & 2-3/4” 1.6mm
447-99-12 8-1” 3-1/2” & 2-3/4” 1.2mm
447-99-16 8-1” 3-1/2” & 2-3/4” 1.6mm
447-84-12 8-1/2” & 4-3/4” 3-1/2” & 2-3/4” 1.2mm
447-CH 447-84-16 8-1/2” & 4-3/4” 3-1/2” & 2-3/4” 1.6mm
447-CH-12 8-1/2” 3-1/2” 1.2mm
4-1/2”&3/4”-C 2-1/2”&3/4”-C
447-CH-16 8-1/2” 3-1/2” 1.6mm
4-1/2”&3/4”-C 2-1/2”&3/4”-C
4” Welded Square Deep 2 1/8” With Raised Ground Screw
– 30.3 Cubic Inch Capacity
447G-CH-12 8-1/2” 2-1/2” 1.2mm
4-1/2”&3/4”-C 2-1/2”&3/4”-C
447G-CH-16 8-1/2” 2-1/2” 1.6mm
4-1/2”&3/4”-C 2-1/2”&3/4”-C

4” Folded Square Deep 2 1/8” With Raised Ground
Screw – 30.3 Cubic Inch Capacity
Knockout
Catalogue No. Side Bottom Thickness
449G-CH-12 4-1/2” 2-1/2” 1.2mm
6-1/2”&3/4”-C 2-1/2”&3/4”-C
449G-CH-16 4-1/2” 2-1/2” 1.6mm
6-1/2”&3/4”-C 2-1/2”&3/4”-C

4 11/16” Drawn Square Deep 2 1/8” – 42.0 Cubic
Inch Capacity
Knockout
Catalogue No. Side Bottom Thickness

504-50-12 12-1/2” 3-1/2” & 2-3/4” 1.2mm
504-50-15 12-1/2” 3-1/2” & 2-3/4” 1.5mm
504-75-12 8-3/4” 3-1/2” & 2-3/4” 1.2mm
504-75-15 8-3/4” 3-1/2” & 2-3/4” 1.5mm
504-84-12 8-1/2” & 4-3/4” 3-1/2” & 2-3/4” 1.2mm
504-84-15 8-1/2” & 4-3/4” 3-1/2” & 2-3/4” 1.5mm
504-95-12 4-3/4” & 4-1” 3-1/2” & 2-3/4” 1.2mm
504-95-15 4-3/4” & 4-1” 3-1/2” & 2-3/4” 1.5mm
504-99-12 4-1” 3-1/2” & 2-3/4” 1.2mm
504-99-15 4-1” 3-1/2” & 2-3/4” 1.5mm
504-CH-12 8-1/2”&3/4”-C 3-1/2” & 2-3/4” 1.2mm
504-CH-15 8-1/2”&3/4”-C 3-1/2” & 2-3/4” 1.5mm
4 11/16” Drawn Square Deep 2 1/8” With Raised
Ground Screw – 42.0 Cubic Inch Capacity
504G-75-12 8-3/4” 2-1/2” & 2-3/4” 1.2mm
504G-75-15 8-3/4” 2-1/2” & 2-3/4” 1.5mm
504G-CH-12 8-1/2”&3/4”-C 2-1/2” & 2-3/4” 1.2mm
504G-CH-15 8-1/2”&3/4”-C 2-1/2” & 2-3/4” 1.5mm
145
