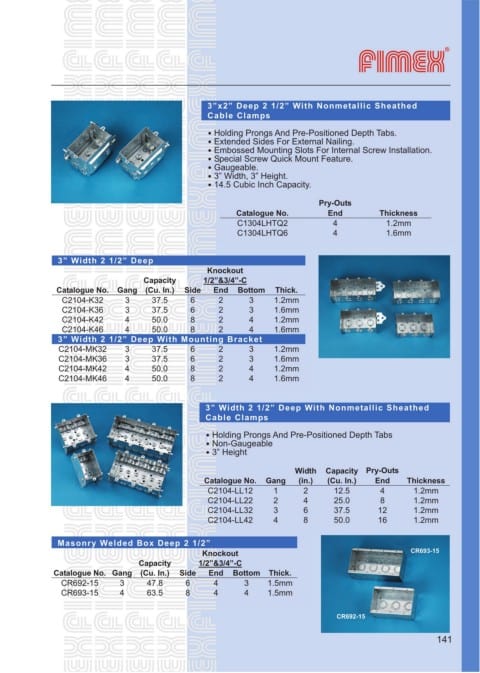

3”x2” Deep 2 1/2” With Nonmetallic Sheathed
Cable Clamps

․Holding Prongs And Pre-Positioned Depth Tabs.
․Extended Sides For External Nailing.
․Embossed Mounting Slots For Internal Screw Installation.
․Special Screw Quick Mount Feature.
․Gaugeable.
․3” Width, 3” Height.
․14.5 Cubic Inch Capacity.

Pry-Outs
Catalogue No. End Thickness
C1304LHTQ2 4 1.2mm
C1304LHTQ6 4 1.6mm

3” Width 2 1/2” Deep
Knockout
Capacity 1/2”&3/4”-C
Catalogue No. Gang (Cu. In.) Side End Bottom Thick.
C2104-K32 3 37.5 6 2 3 1.2mm
C2104-K36 3 37.5 6 2 3 1.6mm
C2104-K42 4 50.0 8 2 4 1.2mm
C2104-K46 4 50.0 8 2 4 1.6mm
3” Width 2 1/2” Deep With Mounting Bracket
C2104-MK32 3 37.5 6 2 3 1.2mm
C2104-MK36 3 37.5 6 2 3 1.6mm
C2104-MK42 4 50.0 8 2 4 1.2mm
C2104-MK46 4 50.0 8 2 4 1.6mm

3” Width 2 1/2” Deep With Nonmetallic Sheathed
Cable Clamps

․Holding Prongs And Pre-Positioned Depth Tabs
․Non-Gaugeable
․3” Height

Width Capacity Pry-Outs

Catalogue No. Gang (in.) (Cu. In.) End Thickness
C2104-LL12 1 2 12.5 4 1.2mm
C2104-LL22 2 4 25.0 8 1.2mm
C2104-LL32 3 6 37.5 12 1.2mm
C2104-LL42 4 8 50.0 16 1.2mm

Masonry Welded Box Deep 2 1/2”
Knockout CR693-15
Capacity 1/2”&3/4”-C
Catalogue No. Gang (Cu. In.) Side End Bottom Thick.
CR692-15 3 47.8 6 4 3 1.5mm
CR693-15 4 63.5 8 4 4 1.5mm

CR692-15
