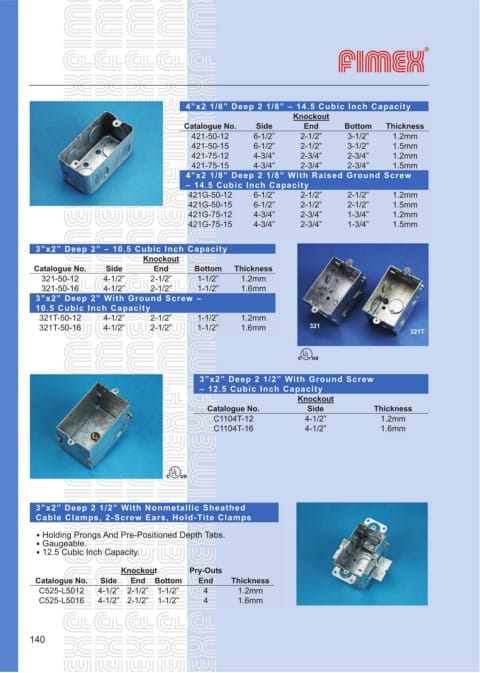

4”x2 1/8” Deep 2 1/8” – 14.5 Cubic Inch Capacity
Knockout
Catalogue No. Side End Bottom Thickness
421-50-12 6-1/2” 2-1/2” 3-1/2” 1.2mm
421-50-15 6-1/2” 2-1/2” 3-1/2” 1.5mm
421-75-12 4-3/4” 2-3/4” 2-3/4” 1.2mm
421-75-15 4-3/4” 2-3/4” 2-3/4” 1.5mm
4”x2 1/8” Deep 2 1/8” With Raised Ground Screw
– 14.5 Cubic Inch Capacity
421G-50-12 6-1/2” 2-1/2” 2-1/2” 1.2mm
421G-50-15 6-1/2” 2-1/2” 2-1/2” 1.5mm
421G-75-12 4-3/4” 2-3/4” 1-3/4” 1.2mm
421G-75-15 4-3/4” 2-3/4” 1-3/4” 1.5mm

3”x2” Deep 2” – 10.5 Cubic Inch Capacity
Knockout
Catalogue No. Side End Bottom Thickness
321-50-12 4-1/2” 2-1/2” 1-1/2” 1.2mm
321-50-16 4-1/2” 2-1/2” 1-1/2” 1.6mm
3”x2” Deep 2” With Ground Screw –
10.5 Cubic Inch Capacity
321T-50-12 4-1/2” 2-1/2” 1-1/2” 1.2mm
321T-50-16 4-1/2” 2-1/2” 1-1/2” 1.6mm 321
321T

3”x2” Deep 2 1/2” With Ground Screw
– 12.5 Cubic Inch Capacity
Knockout
Catalogue No. Side Thickness
C1104T-12 4-1/2” 1.2mm
C1104T-16 4-1/2” 1.6mm

3”x2” Deep 2 1/2” With Nonmetallic Sheathed
Cable Clamps, 2-Screw Ears, Hold-Tite Clamps

․Holding Prongs And Pre-Positioned Depth Tabs.
․Gaugeable.
․12.5 Cubic Inch Capacity.

Knockout Pry-Outs
Catalogue No. Side End Bottom End Thickness
C525-L5012 4-1/2” 2-1/2” 1-1/2” 4 1.2mm
C525-L5016 4-1/2” 2-1/2” 1-1/2” 4 1.6mm

140
