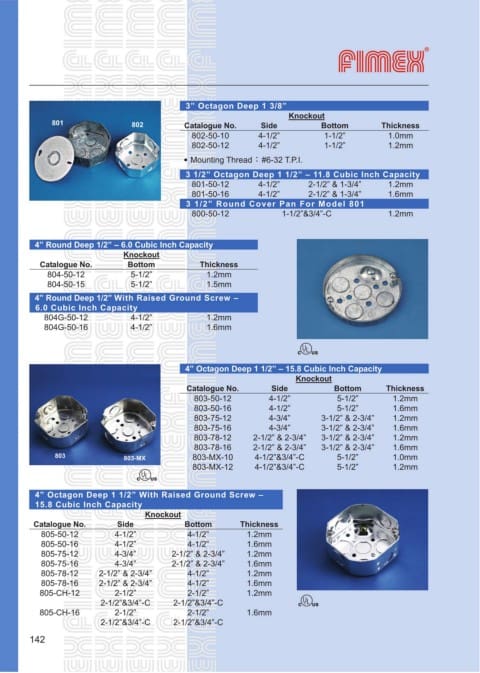

Page 144 - Fimex Taiwan Ltd_Electrical Material-American

3” Octagon Deep 1 3/8”
Knockout
801 802 Catalogue No. Side Bottom Thickness
802-50-10 4-1/2” 1-1/2” 1.0mm
802-50-12 4-1/2” 1-1/2” 1.2mm

․Mounting Thread：#6-32 T.P.I.
3 1/2” Octagon Deep 1 1/2” – 11.8 Cubic Inch Capacity
801-50-12 4-1/2” 2-1/2” & 1-3/4” 1.2mm
801-50-16 4-1/2” 2-1/2” & 1-3/4” 1.6mm
3 1/2” Round Cover Pan For Model 801
800-50-12 1-1/2”&3/4”-C 1.2mm

4” Round Deep 1/2” – 6.0 Cubic Inch Capacity
Knockout
Catalogue No. Bottom Thickness
804-50-12 5-1/2” 1.2mm
804-50-15 5-1/2” 1.5mm
4” Round Deep 1/2” With Raised Ground Screw –
6.0 Cubic Inch Capacity
804G-50-12 4-1/2” 1.2mm
804G-50-16 4-1/2” 1.6mm

4” Octagon Deep 1 1/2” – 15.8 Cubic Inch Capacity
Knockout
Catalogue No. Side Bottom Thickness
803-50-12 4-1/2” 5-1/2” 1.2mm
803-50-16 4-1/2” 5-1/2” 1.6mm
803-75-12 4-3/4” 3-1/2” & 2-3/4” 1.2mm
803-75-16 4-3/4” 3-1/2” & 2-3/4” 1.6mm
803-78-12 2-1/2” & 2-3/4” 3-1/2” & 2-3/4” 1.2mm
803-78-16 2-1/2” & 2-3/4” 3-1/2” & 2-3/4” 1.6mm
803 803-MX 803-MX-10 4-1/2”&3/4”-C 5-1/2” 1.0mm
803-MX-12 4-1/2”&3/4”-C 5-1/2” 1.2mm

4” Octagon Deep 1 1/2” With Raised Ground Screw –
15.8 Cubic Inch Capacity
Knockout
Catalogue No. Side Bottom Thickness
805-50-12 4-1/2” 4-1/2” 1.2mm
805-50-16 4-1/2” 4-1/2” 1.6mm
805-75-12 4-3/4” 2-1/2” & 2-3/4” 1.2mm
805-75-16 4-3/4” 2-1/2” & 2-3/4” 1.6mm
805-78-12 2-1/2” & 2-3/4” 4-1/2” 1.2mm
805-78-16 2-1/2” & 2-3/4” 4-1/2” 1.6mm
805-CH-12 2-1/2” 2-1/2” 1.2mm
2-1/2”&3/4”-C 2-1/2”&3/4”-C
805-CH-16 2-1/2” 2-1/2” 1.6mm
2-1/2”&3/4”-C 2-1/2”&3/4”-C
142
