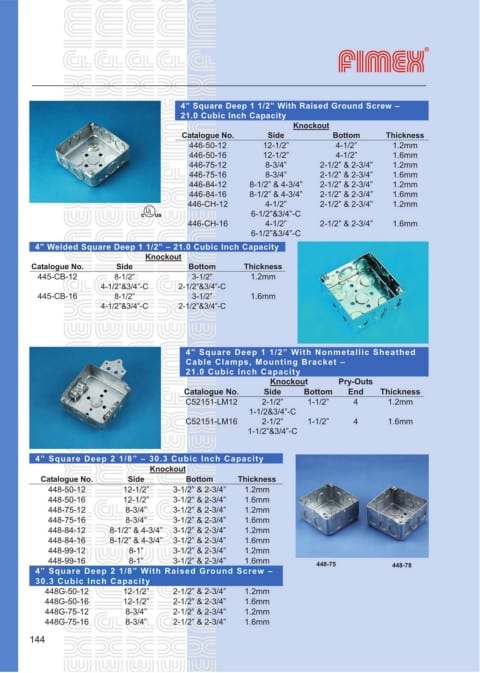

4” Square Deep 1 1/2” With Raised Ground Screw –
21.0 Cubic Inch Capacity
Knockout
Catalogue No. Side Bottom Thickness
446-50-12 12-1/2” 4-1/2” 1.2mm
446-50-16 12-1/2” 4-1/2” 1.6mm
446-75-12 8-3/4” 2-1/2” & 2-3/4” 1.2mm
446-75-16 8-3/4” 2-1/2” & 2-3/4” 1.6mm
446-84-12 8-1/2” & 4-3/4” 2-1/2” & 2-3/4” 1.2mm
446-84-16 8-1/2” & 4-3/4” 2-1/2” & 2-3/4” 1.6mm
446-CH-12 4-1/2” 2-1/2” & 2-3/4” 1.2mm
6-1/2”&3/4”-C
446-CH-16 4-1/2” 2-1/2” & 2-3/4” 1.6mm
6-1/2”&3/4”-C

4” Welded Square Deep 1 1/2” – 21.0 Cubic Inch Capacity
Knockout
Catalogue No. Side Bottom Thickness
445-CB-12 8-1/2” 3-1/2” 1.2mm
4-1/2”&3/4”-C 2-1/2”&3/4”-C
445-CB-16 8-1/2” 3-1/2” 1.6mm
4-1/2”&3/4”-C 2-1/2”&3/4”-C

4” Square Deep 1 1/2” With Nonmetallic Sheathed
Cable Clamps, Mounting Bracket –
21.0 Cubic Inch Capacity
Knockout Pry-Outs
Catalogue No. Side Bottom End Thickness
C52151-LM12 2-1/2” 1-1/2” 4 1.2mm
1-1/2&3/4”-C
C52151-LM16 2-1/2” 1-1/2” 4 1.6mm
1-1/2”&3/4”-C

4” Square Deep 2 1/8” – 30.3 Cubic Inch Capacity
Knockout
Catalogue No. Side Bottom Thickness
448-50-12 12-1/2” 3-1/2” & 2-3/4” 1.2mm
448-50-16 12-1/2” 3-1/2” & 2-3/4” 1.6mm
448-75-12 8-3/4” 3-1/2” & 2-3/4” 1.2mm
448-75-16 8-3/4” 3-1/2” & 2-3/4” 1.6mm
448-84-12 8-1/2” & 4-3/4” 3-1/2” & 2-3/4” 1.2mm
448-84-16 8-1/2” & 4-3/4” 3-1/2” & 2-3/4” 1.6mm
448-99-12 8-1” 3-1/2” & 2-3/4” 1.2mm
448-99-16 8-1” 3-1/2” & 2-3/4” 1.6mm 448-75 448-78
4” Square Deep 2 1/8” With Raised Ground Screw –
30.3 Cubic Inch Capacity
448G-50-12 12-1/2” 2-1/2” & 2-3/4” 1.2mm
448G-50-16 12-1/2” 2-1/2” & 2-3/4” 1.6mm
448G-75-12 8-3/4” 2-1/2” & 2-3/4” 1.2mm
448G-75-16 8-3/4” 2-1/2” & 2-3/4” 1.6mm

144
