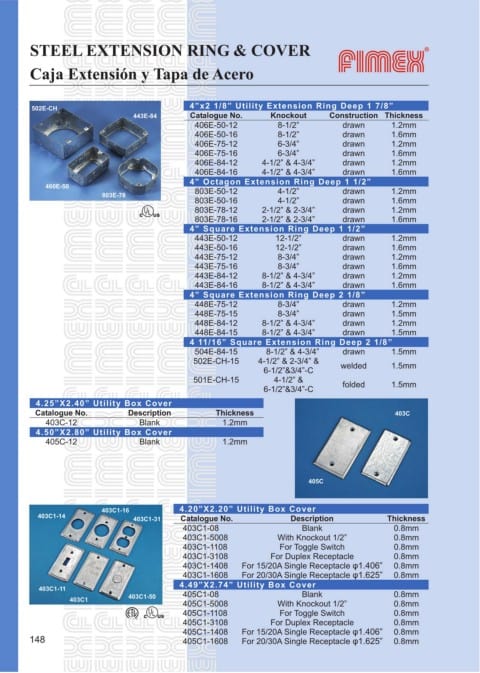

STEEL EXTENSION RING & COVER

Caja Extensión y Tapa de Acero

502E-CH 4”x2 1/8” Utility Extension Ring Deep 1 7/8”
443E-84 Catalogue No. Knockout Construction Thickness
406E-50-12 8-1/2” drawn 1.2mm
406E-50-16 8-1/2” drawn 1.6mm
406E-75-12 6-3/4” drawn 1.2mm
406E-75-16 6-3/4” drawn 1.6mm
406E-84-12 4-1/2” & 4-3/4” drawn 1.2mm
406E-84-16 4-1/2” & 4-3/4” drawn 1.6mm
4” Octagon Extension Ring Deep 1 1/2”
460E-50 803E-50-12 4-1/2” drawn 1.2mm
803E-78
803E-50-16 4-1/2” drawn 1.6mm
803E-78-12 2-1/2” & 2-3/4” drawn 1.2mm
803E-78-16 2-1/2” & 2-3/4” drawn 1.6mm
4” Square Extension Ring Deep 1 1/2”
443E-50-12 12-1/2” drawn 1.2mm
443E-50-16 12-1/2” drawn 1.6mm
443E-75-12 8-3/4” drawn 1.2mm
443E-75-16 8-3/4” drawn 1.6mm
443E-84-12 8-1/2” & 4-3/4” drawn 1.2mm
443E-84-16 8-1/2” & 4-3/4” drawn 1.6mm
4” Square Extension Ring Deep 2 1/8”
448E-75-12 8-3/4” drawn 1.2mm
448E-75-15 8-3/4” drawn 1.5mm
448E-84-12 8-1/2” & 4-3/4” drawn 1.2mm
448E-84-15 8-1/2” & 4-3/4” drawn 1.5mm
4 11/16” Square Extension Ring Deep 2 1/8”
504E-84-15 8-1/2” & 4-3/4” drawn 1.5mm
502E-CH-15 4-1/2” & 2-3/4” & welded 1.5mm
6-1/2”&3/4”-C
501E-CH-15 4-1/2” & folded 1.5mm
6-1/2”&3/4”-C

4.25”X2.40” Utility Box Cover
Catalogue No. Description Thickness 403C
403C-12 Blank 1.2mm
4.50”X2.80” Utility Box Cover
405C-12 Blank 1.2mm

405C

403C1-16 4.20”X2.20” Utility Box Cover
403C1-14 403C1-31 Catalogue No. Description Thickness
403C1-08 Blank 0.8mm
403C1-5008 With Knockout 1/2” 0.8mm
403C1-1108 For Toggle Switch 0.8mm
403C1-3108 For Duplex Receptacle 0.8mm
403C1-1408 For 15/20A Single Receptacle φ1.406” 0.8mm
403C1-1608 For 20/30A Single Receptacle φ1.625” 0.8mm
4.49”X2.74” Utility Box Cover
403C1-11
403C1-50 405C1-08 Blank 0.8mm
403C1
405C1-5008 With Knockout 1/2” 0.8mm
405C1-1108 For Toggle Switch 0.8mm
405C1-3108 For Duplex Receptacle 0.8mm
405C1-1408 For 15/20A Single Receptacle φ1.406” 0.8mm
148 405C1-1608 For 20/30A Single Receptacle φ1.625” 0.8mm
