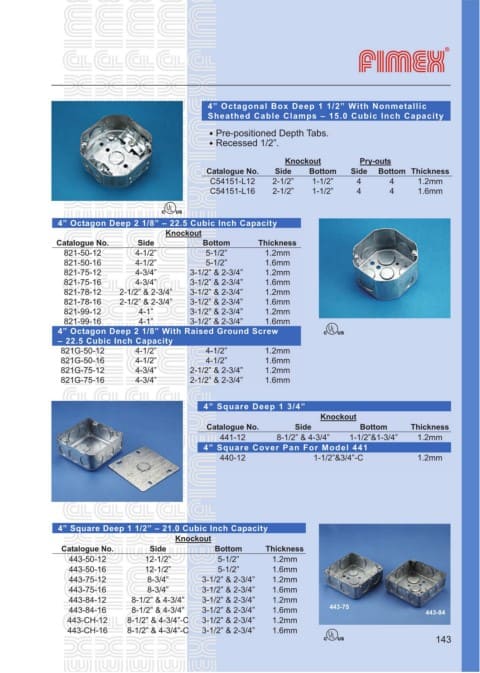

4” Octagonal Box Deep 1 1/2” With Nonmeta llic
Sheathed Cable Clamps – 15.0 Cubic Inch Capacity
․Pre-positioned Depth Tabs.
․Recessed 1/2”.

Knockout Pry-outs
Catalogue No. Side Bottom Side Bottom Thickness
C54151-L12 2-1/2” 1-1/2” 4 4 1.2mm
C54151-L16 2-1/2” 1-1/2” 4 4 1.6mm

4” Octagon Deep 2 1/8” – 22.5 Cubic Inch Capacity
Knockout
Catalogue No. Side Bottom Thickness
821-50-12 4-1/2” 5-1/2” 1.2mm
821-50-16 4-1/2” 5-1/2” 1.6mm
821-75-12 4-3/4” 3-1/2” & 2-3/4” 1.2mm
821-75-16 4-3/4” 3-1/2” & 2-3/4” 1.6mm
821-78-12 2-1/2” & 2-3/4” 3-1/2” & 2-3/4” 1.2mm
821-78-16 2-1/2” & 2-3/4” 3-1/2” & 2-3/4” 1.6mm
821-99-12 4-1” 3-1/2” & 2-3/4” 1.2mm
821-99-16 4-1” 3-1/2” & 2-3/4” 1.6mm
4” Octagon Deep 2 1/8” With Raised Ground Screw
– 22.5 Cubic Inch Capacity
821G-50-12 4-1/2” 4-1/2” 1.2mm
821G-50-16 4-1/2” 4-1/2” 1.6mm
821G-75-12 4-3/4” 2-1/2” & 2-3/4” 1.2mm
821G-75-16 4-3/4” 2-1/2” & 2-3/4” 1.6mm

4” Square Deep 1 3/4”
Knockout
Catalogue No. Side Bottom Thickness
441-12 8-1/2” & 4-3/4” 1-1/2”&1-3/4” 1.2mm
4” Square Cover Pan For Model 441
440-12 1-1/2”&3/4”-C 1.2mm

4” Square Deep 1 1/2” – 21.0 Cubic Inch Capacity
Knockout
Catalogue No. Side Bottom Thickness
443-50-12 12-1/2” 5-1/2” 1.2mm
443-50-16 12-1/2” 5-1/2” 1.6mm
443-75-12 8-3/4” 3-1/2” & 2-3/4” 1.2mm
443-75-16 8-3/4” 3-1/2” & 2-3/4” 1.6mm
443-84-12 8-1/2” & 4-3/4” 3-1/2” & 2-3/4” 1.2mm
443-84-16 8-1/2” & 4-3/4” 3-1/2” & 2-3/4” 1.6mm 443-75 CR693-15
443-84
443-CH-12 8-1/2” & 4-3/4”-C 3-1/2” & 2-3/4” 1.2mm
443-CH-16 8-1/2” & 4-3/4”-C 3-1/2” & 2-3/4” 1.6mm
143
