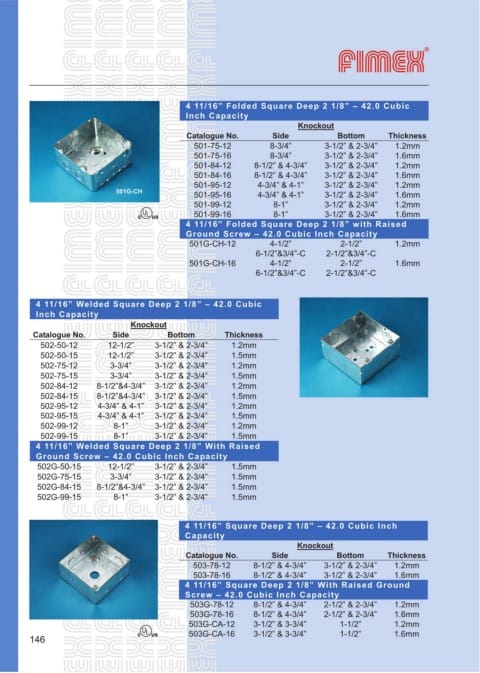

Page 148 - Fimex Taiwan Ltd_Electrical Material-American

4 11/16” Folded Square Deep 2 1/8” – 42.0 Cubic
Inch Capacity
Knockout
Catalogue No. Side Bottom Thickness
501-75-12 8-3/4” 3-1/2” & 2-3/4” 1.2mm
501-75-16 8-3/4” 3-1/2” & 2-3/4” 1.6mm
501-84-12 8-1/2” & 4-3/4” 3-1/2” & 2-3/4” 1.2mm
501-84-16 8-1/2” & 4-3/4” 3-1/2” & 2-3/4” 1.6mm
501-95-12 4-3/4” & 4-1” 3-1/2” & 2-3/4” 1.2mm
501G-CH 501-95-16 4-3/4” & 4-1” 3-1/2” & 2-3/4” 1.6mm
501-99-12 8-1” 3-1/2” & 2-3/4” 1.2mm
501-99-16 8-1” 3-1/2” & 2-3/4” 1.6mm
4 11/16” Folded Square Deep 2 1/8” with Raised
Ground Screw – 42.0 Cubic Inch Capacity
501G-CH-12 4-1/2” 2-1/2” 1.2mm
6-1/2”&3/4”-C 2-1/2”&3/4”-C
501G-CH-16 4-1/2” 2-1/2” 1.6mm
6-1/2”&3/4”-C 2-1/2”&3/4”-C

4 11/16” Welded Square Deep 2 1/8” – 42.0 Cubic
Inch Capacity
Knockout
Catalogue No. Side Bottom Thickness
502-50-12 12-1/2” 3-1/2” & 2-3/4” 1.2mm
502-50-15 12-1/2” 3-1/2” & 2-3/4” 1.5mm

502-75-12 3-3/4” 3-1/2” & 2-3/4” 1.2mm
502-75-15 3-3/4” 3-1/2” & 2-3/4” 1.5mm
502-84-12 8-1/2”&4-3/4” 3-1/2” & 2-3/4” 1.2mm
502-84-15 8-1/2”&4-3/4” 3-1/2” & 2-3/4” 1.5mm
502-95-12 4-3/4” & 4-1” 3-1/2” & 2-3/4” 1.2mm
1.5mm
3-1/2” & 2-3/4”
4-3/4” & 4-1”
502-95-15
502-99-12 8-1” 3-1/2” & 2-3/4” 1.2mm
502-99-15 8-1” 3-1/2” & 2-3/4” 1.5mm
4 11/16” Welded Square Deep 2 1/8” With Raised
Ground Screw – 42.0 Cubic Inch Capacity
502G-50-15 12-1/2” 3-1/2” & 2-3/4” 1.5mm
3-3/4”
502G-75-15 8-1/2”&4-3/4” 3-1/2” & 2-3/4” 1.5mm
3-1/2” & 2-3/4”
1.5mm
502G-84-15
502G-99-15 8-1” 3-1/2” & 2-3/4” 1.5mm

4 11/16” Square Deep 2 1/8” – 42.0 Cubic Inch
Capacity
Knockout
Catalogue No. Side Bottom Thickness
503-78-12 8-1/2” & 4-3/4” 3-1/2” & 2-3/4” 1.2mm
503-78-16 8-1/2” & 4-3/4” 3-1/2” & 2-3/4” 1.6mm
4 11/16” Square Deep 2 1/8” With Raised Ground
Screw – 42.0 Cubic Inch Capacity
503G-78-12 8-1/2” & 4-3/4” 2-1/2” & 2-3/4” 1.2mm
503G-78-16 8-1/2” & 4-3/4” 2-1/2” & 2-3/4” 1.6mm
503G-CA-12 3-1/2” & 3-3/4” 1-1/2” 1.2mm
503G-CA-16 3-1/2” & 3-3/4” 1-1/2” 1.6mm
146
