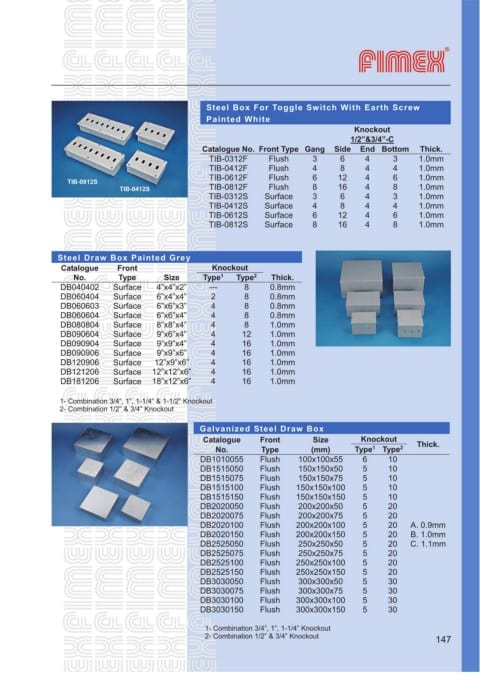

Steel Box For Toggle Switch With Earth Screw

Painted White
Knockout
1/2”&3/4”-C
Catalogue No. Front Type Gang Side End Bottom Thick.
TIB-0312F Flush 3 6 4 3 1.0mm
TIB-0412F Flush 4 8 4 4 1.0mm
TIB-0612F Flush 6 12 4 6 1.0mm
TIB-0812S
TIB-0412S TIB-0812F Flush 8 16 4 8 1.0mm
TIB-0312S Surface 3 6 4 3 1.0mm
TIB-0412S Surface 4 8 4 4 1.0mm
TIB-0612S Surface 6 12 4 6 1.0mm
TIB-0812S Surface 8 16 4 8 1.0mm

Steel Draw Box Painted Grey
Catalogue Front Knockout
2
No. Type Size Type 1 Type Thick.
DB040402 Surface 4”x4”x2” --- 8 0.8mm
DB060404 Surface 6”x4”x4” 2 8 0.8mm
DB060603 Surface 6”x6”x3” 4 8 0.8mm
0.8mm
4
8
DB060604
6”x6”x4”
Surface
DB080804 Surface 8”x8”x4” 4 8 1.0mm
DB090604 Surface 9”x6”x4” 4 12 1.0mm
DB090904 Surface 9”x9”x4” 4 16 1.0mm
DB090906 Surface 9”x9”x6” 4 16 1.0mm
DB120906 Surface 12”x9”x6” 4 16 1.0mm
DB121206 Surface 12”x12”x6” 4 16 1.0mm
Surface
16
1.0mm
DB181206
18”x12”x6”
4

1- Combination 3/4”, 1”, 1-1/4” & 1-1/2” Knockout
2- Combination 1/2” & 3/4” Knockout
Galvanized Steel Draw Box
Catalogue Front Size Knockout Thick.
2
1
No. Type (mm) Type Type
DB1010055 Flush 100x100x55 6 10
DB1515050 Flush 150x150x50 5 10
DB1515075 Flush 150x150x75 5 10
DB1515100 Flush 150x150x100 5 10
DB1515150 Flush 150x150x150 5 10
DB2020050 Flush 200x200x50 5 20
DB2020075 Flush 200x200x75 5 20
DB2020100 Flush 200x200x100 5 20 A. 0.9mm
DB2020150 Flush 200x200x150 5 20 B. 1.0mm
DB2525050 Flush 250x250x50 5 20 C. 1.1mm
DB2525075 Flush 250x250x75 5 20
DB2525100 Flush 250x250x100 5 20
DB2525150 Flush 250x250x150 5 20
DB3030050 Flush 300x300x50 5 30
DB3030075 Flush 300x300x75 5 30
DB3030100 Flush 300x300x100 5 30
DB3030150 Flush 300x300x150 5 30

1- Combination 3/4”, 1”, 1-1/4” Knockout
2- Combination 1/2” & 3/4” Knockout
