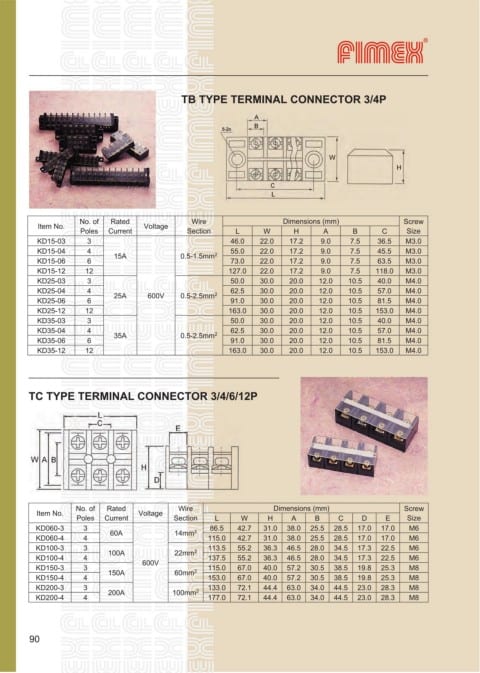

Page 92 - Fimex Taiwan Ltd_Wiring Devices 2018

TB TYPE TERMINAL CONNECTOR 3/4P

No. of Rated Wire Dimensions (mm) Screw
Item No. Voltage
Poles Current Section L W H A B C Size
KD15-03 3 46.0 22.0 17.2 9.0 7.5 36.5 M3.0
KD15-04 4 2 55.0 22.0 17.2 9.0 7.5 45.5 M3.0
KD15-06 6 15A 0.5-1.5mm 73.0 22.0 17.2 9.0 7.5 63.5 M3.0
KD15-12 12 127.0 22.0 17.2 9.0 7.5 118.0 M3.0
KD25-03 3 50.0 30.0 20.0 12.0 10.5 40.0 M4.0
KD25-04 4 25A 600V 0.5-2.5mm 2 62.5 30.0 20.0 12.0 10.5 57.0 M4.0
KD25-06 6 91.0 30.0 20.0 12.0 10.5 81.5 M4.0
KD25-12 12 163.0 30.0 20.0 12.0 10.5 153.0 M4.0
KD35-03 3 50.0 30.0 20.0 12.0 10.5 40.0 M4.0
KD35-04 4 35A 0.5-2.5mm 2 62.5 30.0 20.0 12.0 10.5 57.0 M4.0
KD35-06 6 91.0 30.0 20.0 12.0 10.5 81.5 M4.0
KD35-12 12 163.0 30.0 20.0 12.0 10.5 153.0 M4.0

TC TYPE TERMINAL CONNECTOR 3/4/6/12P

No. of Rated Wire Dimensions (mm) Screw
Item No. Voltage
Poles Current Section L W H A B C D E Size
KD060-3 3 2 86.5 42.7 31.0 38.0 25.5 28.5 17.0 17.0 M6
KD060-4 4 60A 14mm 115.0 42.7 31.0 38.0 25.5 28.5 17.0 17.0 M6
KD100-3 3 100A 22mm 2 113.5 55.2 36.3 46.5 28.0 34.5 17.3 22.5 M6
KD100-4 4 137.5 55.2 36.3 46.5 28.0 34.5 17.3 22.5 M6
KD150-3 3 150A 600V 60mm 2 115.0 67.0 40.0 57.2 30.5 38.5 19.8 25.3 M8
KD150-4 4 153.0 67.0 40.0 57.2 30.5 38.5 19.8 25.3 M8
KD200-3 3 2 133.0 72.1 44.4 63.0 34.0 44.5 23.0 28.3 M8
KD200-4 4 200A 100mm 177.0 72.1 44.4 63.0 34.0 44.5 23.0 28.3 M8
