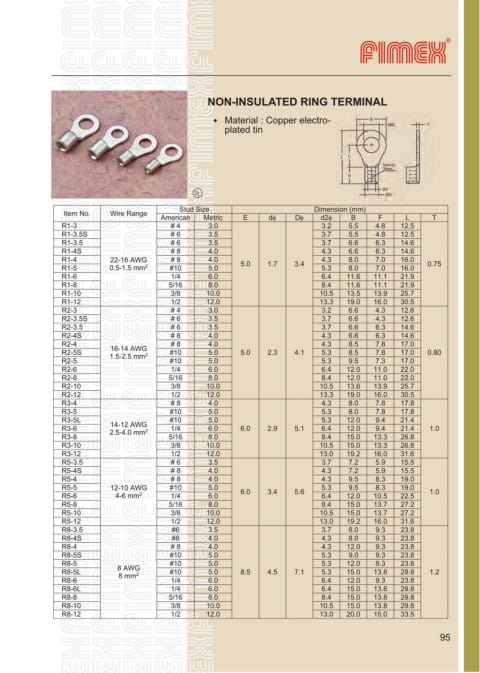

Page 97 - Fimex Taiwan Ltd_Wiring Devices 2018

NON-INSULATED RING TERMINAL

․ Material : Copper electro-
plated tin

Stud Size Dimension (mm)
Item No. Wire Range
American Metric E d D d2 B F L T
R1-3 # 4 3.0 3.2 5.5 4.8 12.5
R1-3.5S # 6 3.5 3.7 5.5 4.8 12.5
R1-3.5 # 6 3.5 3.7 6.6 6.3 14.6
R1-4S # 8 4.0 4.3 6.6 6.3 14.6
R1-4 22-16 AWG # 8 4.0 4.3 8.0 7.0 16.0
R1-5 0.5-1.5 mm 2 #10 5.0 5.0 1.7 3.4 5.3 8.0 7.0 16.0 0.75
R1-6 1/4 6.0 6.4 11.6 11.1 21.9
R1-8 5/16 8.0 8.4 11.6 11.1 21.9
R1-10 3/8 10.0 10.5 13.5 13.9 25.7
R1-12 1/2 12.0 13.3 19.0 16.0 30.5
R2-3 # 4 3.0 3.2 6.6 4.3 12.6
R2-3.5S # 6 3.5 3.7 6.6 4.3 12.6
R2-3.5 # 6 3.5 3.7 6.6 6.3 14.6
R2-4S # 8 4.0 4.3 6.6 6.3 14.6
R2-4 # 8 4.0 4.3 8.5 7.8 17.0
16-14 AWG
R2-5S 1.5-2.5 mm 2 #10 5.0 5.0 2.3 4.1 5.3 8.5 7.8 17.0 0.80
R2-5 #10 5.0 5.3 9.5 7.3 17.0
R2-6 1/4 6.0 6.4 12.0 11.0 22.0
R2-8 5/16 8.0 8.4 12.0 11.0 22.0
R2-10 3/8 10.0 10.5 13.6 13.9 25.7
R2-12 1/2 12.0 13.3 19.0 16.0 30.5
R3-4 # 8 4.0 4.3 8.0 7.8 17.8
R3-5 #10 5.0 5.3 8.0 7.8 17.8
R3-5L #10 5.0 5.3 12.0 9.4 21.4
14-12 AWG
R3-6 2.5-4.0 mm 2 1/4 6.0 6.0 2.9 5.1 6.4 12.0 9.4 21.4 1.0
R3-8 5/16 8.0 8.4 15.0 13.3 26.8
R3-10 3/8 10.0 10.5 15.0 13.3 26.8
R3-12 1/2 12.0 13.0 19.2 16.0 31.6
R5-3.5 # 6 3.5 3.7 7.2 5.9 15.5
R5-4S # 8 4.0 4.3 7.2 5.9 15.5
R5-4 # 8 4.0 4.3 9.5 8.3 19.0
R5-5 12-10 AWG #10 5.0 5.3 9.5 8.3 19.0
R5-6 4-6 mm 2 1/4 6.0 6.0 3.4 5.6 6.4 12.0 10.5 22.5 1.0
R5-8 5/16 8.0 8.4 15.0 13.7 27.2
R5-10 3/8 10.0 10.5 15.0 13.7 27.2
R5-12 1/2 12.0 13.0 19.2 16.0 31.6
R8-3.5 #6 3.5 3.7 8.0 9.3 23.8
R8-4S #8 4.0 4.3 8.0 9.3 23.8
R8-4 # 8 4.0 4.3 12.0 9.3 23.8
R8-5S #10 5.0 5.3 9.0 9.3 23.8
R8-5 #10 5.0 5.3 12.0 9.3 23.8
R8-5L 8 AWG 2 #10 5.0 8.5 4.5 7.1 5.3 15.0 13.8 29.8 1.2
8mm
R8-6 1/4 6.0 6.4 12.0 9.3 23.8
R8-6L 1/4 6.0 6.4 15.0 13.8 29.8
R8-8 5/16 8.0 8.4 15.0 13.8 29.8
R8-10 3/8 10.0 10.5 15.0 13.8 29.8
R8-12 1/2 12.0 13.0 20.0 15.0 33.5
