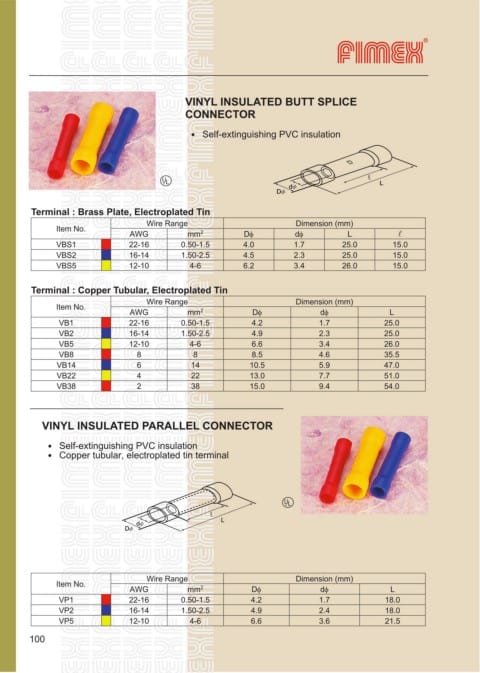

VINYL INSULATED BUTT SPLICE
CONNECTOR

․ Self-extinguishing PVC insulation

Terminal : Brass Plate, Electroplated Tin
Wire Range Dimension (mm)
Item No.
AWG mm 2 D d L 
VBS1 22-16 0.50-1.5 4.0 1.7 25.0 15.0
VBS2 16-14 1.50-2.5 4.5 2.3 25.0 15.0
VBS5 12-10 4-6 6.2 3.4 26.0 15.0

Terminal : Copper Tubular, Electroplated Tin
Wire Range Dimension (mm)
Item No.
AWG mm 2 D d L
VB1 22-16 0.50-1.5 4.2 1.7 25.0
VB2 16-14 1.50-2.5 4.9 2.3 25.0
VB5 12-10 4-6 6.6 3.4 26.0
VB8 8 8 8.5 4.6 35.5
VB14 6 14 10.5 5.9 47.0
VB22 4 22 13.0 7.7 51.0
VB38 2 38 15.0 9.4 54.0

VINYL INSULATED PARALLEL CONNECTOR

․ Self-extinguishing PVC insulation
․ Copper tubular, electroplated tin terminal

Wire Range Dimension (mm)
Item No.
AWG mm 2 D d L
VP1 22-16 0.50-1.5 4.2 1.7 18.0
VP2 16-14 1.50-2.5 4.9 2.4 18.0
VP5 12-10 4-6 6.6 3.6 21.5
