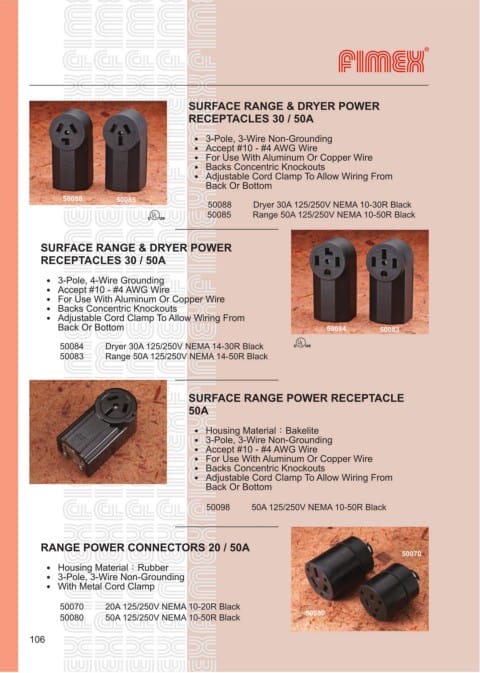

P. 108
SURFACE RANGE & DRYER POWER
RECEPTACLES 30 / 50A
˙ 3-Pole, 3-Wire Non-Grounding
˙ Accept #10 - #4 AWG Wire
˙ For Use With Aluminum Or Copper Wire
˙ Backs Concentric Knockouts
˙ Adjustable Cord Clamp To Allow Wiring From
Back Or Bottom
50088 50085
50088 Dryer 30A 125/250V NEMA 10-30R Black
50085 Range 50A 125/250V NEMA 10-50R Black
SURFACE RANGE & DRYER POWER
RECEPTACLES 30 / 50A
˙ 3-Pole, 4-Wire Grounding
˙ Accept #10 - #4 AWG Wire
˙ For Use With Aluminum Or Copper Wire
˙ Backs Concentric Knockouts
˙ Adjustable Cord Clamp To Allow Wiring From
Back Or Bottom 50084 50083
50084 Dryer 30A 125/250V NEMA 14-30R Black
50083 Range 50A 125/250V NEMA 14-50R Black
SURFACE RANGE POWER RECEPTACLE
50A
˙ Housing Material：Bakelite
˙ 3-Pole, 3-Wire Non-Grounding
˙ Accept #10 - #4 AWG Wire
˙ For Use With Aluminum Or Copper Wire
˙ Backs Concentric Knockouts
˙ Adjustable Cord Clamp To Allow Wiring From
Back Or Bottom
50098 50A 125/250V NEMA 10-50R Black
RANGE POWER CONNECTORS 20 / 50A
50070
˙ Housing Material：Rubber
˙ 3-Pole, 3-Wire Non-Grounding
˙ With Metal Cord Clamp
50070 20A 125/250V NEMA 10-20R Black
50080 50A 125/250V NEMA 10-50R Black 50080
106
