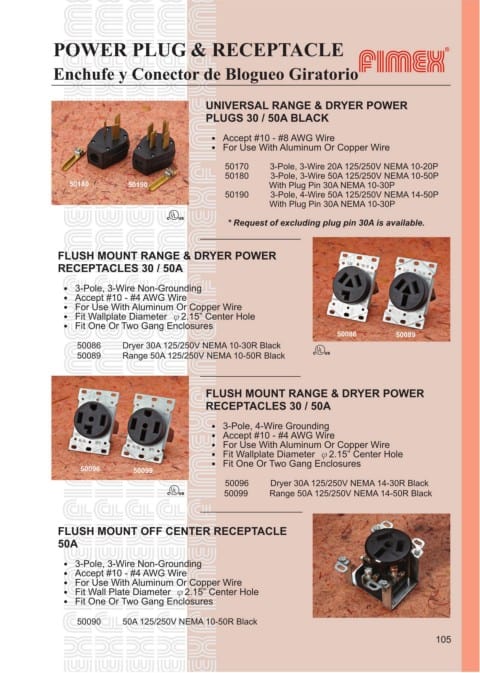

POWER PLUG & RECEPTACLE

Enchufe y Conector de Blogueo Giratorio

UNIVERSAL RANGE & DRYER POWER
PLUGS 30 / 50A BLACK

˙ Accept #10 - #8 AWG Wire
˙ For Use With Aluminum Or Copper Wire

50170 3-Pole, 3-Wire 20A 125/250V NEMA 10-20P
50180 3-Pole, 3-Wire 50A 125/250V NEMA 10-50P
50180 50190 With Plug Pin 30A NEMA 10-30P
50190 3-Pole, 4-Wire 50A 125/250V NEMA 14-50P
With Plug Pin 30A NEMA 10-30P

* Request of excluding plug pin 30A is available.

FLUSH MOUNT RANGE & DRYER POWER
RECEPTACLES 30 / 50A

˙ 3-Pole, 3-Wire Non-Grounding
˙ Accept #10 - #4 AWG Wire
˙ For Use With Aluminum Or Copper Wire
˙ Fit Wallplate Diameter φ2.15” Center Hole
˙ Fit One Or Two Gang Enclosures
50086 50089
50086 Dryer 30A 125/250V NEMA 10-30R Black
50089 Range 50A 125/250V NEMA 10-50R Black

FLUSH MOUNT RANGE & DRYER POWER
RECEPTACLES 30 / 50A

˙ 3-Pole, 4-Wire Grounding
˙ Accept #10 - #4 AWG Wire
˙ For Use With Aluminum Or Copper Wire
˙ Fit Wallplate Diameter φ2.15” Center Hole
˙ Fit One Or Two Gang Enclosures
50096 50099
50096 Dryer 30A 125/250V NEMA 14-30R Black
50099 Range 50A 125/250V NEMA 14-50R Black

FLUSH MOUNT OFF CENTER RECEPTACLE
50A

˙ 3-Pole, 3-Wire Non-Grounding
˙ Accept #10 - #4 AWG Wire
˙ For Use With Aluminum Or Copper Wire
˙ Fit Wall Plate Diameter φ2.15” Center Hole
˙ Fit One Or Two Gang Enclosures

50090 50A 125/250V NEMA 10-50R Black
