P. 182

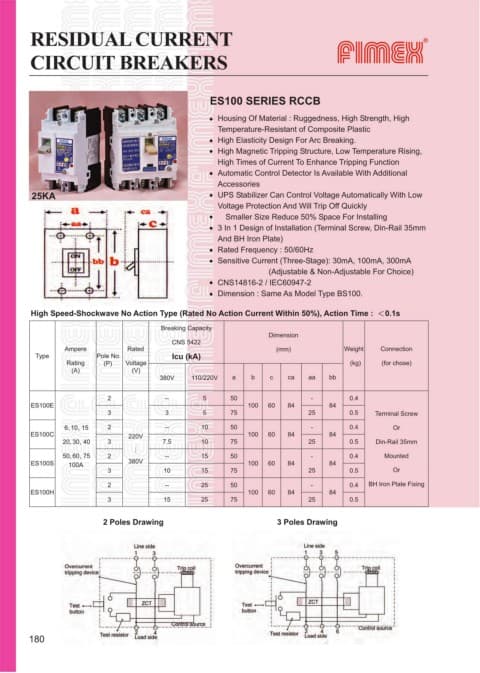

RESIDUAL CURRENT


         CIRCUIT BREAKERS





                                                       ES100 SERIES RCCB

                                                      ․  Housing Of Material : Ruggedness, High Strength, High
                                                         Temperature-Resistant of Composite Plastic
                                                      ․  High Elasticity Design For Arc Breaking.
                                                      ․  High Magnetic Tripping Structure, Low Temperature Rising,
                                                         High Times of Current To Enhance Tripping Function
                                                      ․  Automatic Control Detector Is Available With Additional
                                                         Accessories
         25KA                                         ․  UPS Stabilizer Can Control Voltage Automatically With Low
                                                         Voltage Protection And Will Trip Off Quickly
                                                      ․    Smaller Size Reduce 50% Space For Installing
                                                      ․  3 In 1 Design of Installation (Terminal Screw, Din-Rail 35mm
                                                         And BH Iron Plate)
                                                      ․  Rated Frequency : 50/60Hz
                                                      ․  Sensitive Current (Three-Stage): 30mA, 100mA, 300mA
                                                                      (Adjustable & Non-Adjustable For Choice)
                                                      ․  CNS14816-2 / IEC60947-2
                                                      ․  Dimension : Same As Model Type BS100.

         High Speed-Shockwave No Action Type (Rated No Action Current Within 50%), Action Time :  <<0.1s

                                          Breaking Capacity
                                                                      Dimension
                                             CNS 5422
                 Ampere          Rated                                 (mm)              Weight   Connection
          Type            Pole No.           Icu (kA)
                  Rating   (P)   Voltage                                                  (kg)    (for chose)
                   (A)             (V)
                                          380V    110/220V  a    b    c   ca    aa   bb

                            2              --        5      50                  -         0.4
         ES100E                                                 100  60   84         84
                            3              3         5      75                  25        0.5    Terminal Screw

                 6,10, 15   2              --       10      50                  -         0.4        Or
         ES100C                   220V                          100  60   84         84
                 20, 30, 40  3            7.5       10      75                  25        0.5    Din-Rail 35mm
                                   │
                 50, 60, 75  2             --       15      50                  -         0.4      Mounted
         ES100S   100A            380V                          100  60   84         84
                            3              10       15      75                  25        0.5        Or

                            2              --       25      50                  -         0.4  BH Iron Plate Fixing
         ES100H                                                 100  60   84         84
                            3              15       25      75                  25        0.5


                           2 Poles Drawing                                      3 Poles Drawing
