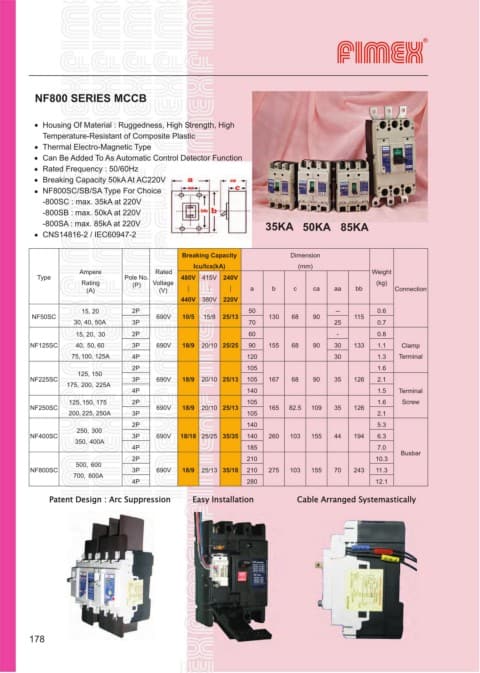

NF800 SERIES MCCB

․ Housing Of Material : Ruggedness, High Strength, High
Temperature-Resistant of Composite Plastic
․ Thermal Electro-Magnetic Type
․ Can Be Added To As Automatic Control Detector Function
․ Rated Frequency : 50/60Hz
․ Breaking Capacity 50kA At AC220V
․ NF800SC/SB/SA Type For Choice
-800SC : max. 35kA at 220V
-800SB : max. 50kA at 220V
-800SA : max. 85kA at 220V 35KA 50KA 85KA
․ CNS14816-2 / IEC60947-2

Breaking Capacity Dimension
Icu/Ics(kA) (mm)
Ampere Rated Weight
Type Pole No. 480V 415V 240V
Rating (P) Voltage (kg)
│
│
(A) (V) │ │ │ a b c ca aa bb Connection
440V 380V 220V
15, 20 2P 50 -- 0.6
NF50SC 690V 10/5 15/8 25/13 130 68 90 115
30, 40, 50A 3P 70 25 0.7
15, 20, 30 2P 60 - 0.8
NF125SC 40, 50, 60 3P 690V 18/9 20/10 25/25 90 155 68 90 30 133 1.1 Clamp
75,100, 125A 4P 120 30 1.3 Terminal
2P 105 1.6
125, 150
NF225SC 3P 690V 18/9 20/10 25/13 105 167 68 90 35 126 2.1
175, 200, 225A
4P 140 1.5 Terminal
125, 150, 175 2P 105 1.6 Screw
NF250SC 690V 18/9 20/10 25/13 165 82.5 109 35 126
200, 225, 250A 3P 105 2.1
2P 140 5.3
250, 300
NF400SC 3P 690V 18/18 25/25 35/35 140 260 103 155 44 194 6.3
350, 400A
4P 185 7.0
Busbar
2P 210 10.3
500, 600
NF800SC 3P 690V 18/9 25/13 35/18 210 275 103 155 70 243 11.3
700, 800A
4P 280 12.1
Patent Design : Arc Suppression Easy Installation Cable Arranged Systemastically
