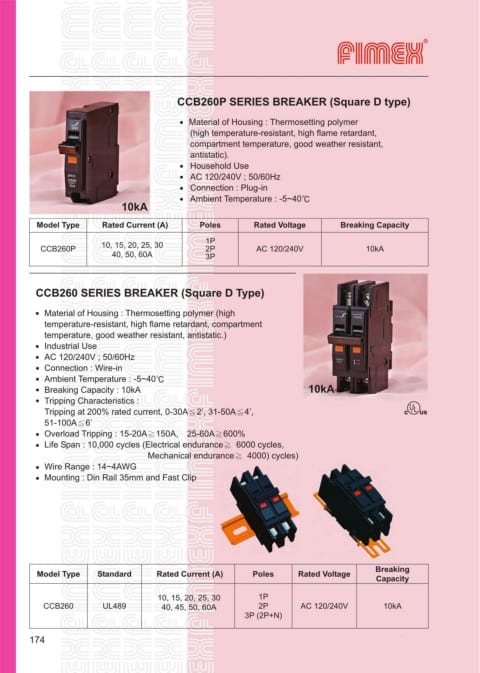

CCB260P SERIES BREAKER (Square D type)

․ Material of Housing : Thermosetting polymer
(high temperature-resistant, high flame retardant,
compartment temperature, good weather resistant,
antistatic).
․ Household Use
․ AC 120/240V ; 50/60Hz
․ Connection : Plug-in
․ Ambient Temperature : -5~40ʨ
10kA

Model Type Rated Current (A) Poles Rated Voltage Breaking Capacity

1P
10, 15, 20, 25, 30
CCB260P 2P AC 120/240V 10kA
40, 50, 60A 3P

CCB260 SERIES BREAKER (Square D Type)

․ Material of Housing : Thermosetting polymer (high
temperature-resistant, high flame retardant, compartment
temperature, good weather resistant, antistatic.)
․ Industrial Use
․ AC 120/240V ; 50/60Hz
․ Connection : Wire-in
․ Ambient Temperature : -5~40ʨ
․ Breaking Capacity : 10kA 10kA
․ Tripping Characteristics :
Tripping at 200% rated current, 0-30A≦2’, 31-50A≦4’,
51-100A≦6’
․ Overload Tripping : 15-20A≧150A, 25-60A≧600%
․ Life Span : 10,000 cycles (Electrical endurance≧ 6000 cycles,
Mechanical endurance≧ 4000) cycles)
․ Wire Range : 14~4AWG
․ Mounting : Din Rail 35mm and Fast Clip

Breaking
Model Type Standard Rated Current (A) Poles Rated Voltage
Capacity

10, 15, 20, 25, 30 1P
CCB260 UL489 40, 45, 50, 60A 2P AC 120/240V 10kA
3P (2P+N)
