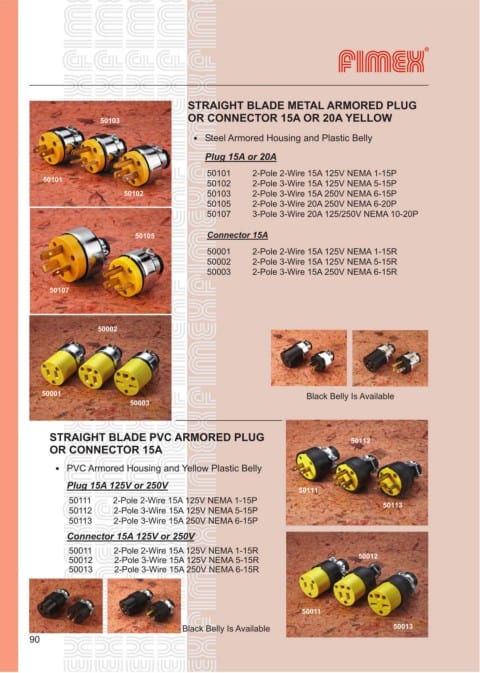

STRAIGHT BLADE METAL ARMORED PLUG
OR CONNECTOR 15A OR 20A YELLOW
50103
˙ Steel Armored Housing and Plastic Belly

Plug 15A or 20A

50101 2-Pole 2-Wire 15A 125V NEMA 1-15P
50101
50102 2-Pole 3-Wire 15A 125V NEMA 5-15P
50102 50103 2-Pole 3-Wire 15A 250V NEMA 6-15P
50105 2-Pole 3-Wire 20A 250V NEMA 6-20P
50107 3-Pole 3-Wire 20A 125/250V NEMA 10-20P

50105 Connector 15A
50001 2-Pole 2-Wire 15A 125V NEMA 1-15R
50002 2-Pole 3-Wire 15A 125V NEMA 5-15R
50003 2-Pole 3-Wire 15A 250V NEMA 6-15R

50107

50002

50001 Black Belly Is Available
50003

STRAIGHT BLADE PVC ARMORED PLUG 50112
OR CONNECTOR 15A

˙ PVC Armored Housing and Yellow Plastic Belly

Plug 15A 125V or 250V
50111
50111 2-Pole 2-Wire 15A 125V NEMA 1-15P 50113
50112 2-Pole 3-Wire 15A 125V NEMA 5-15P
50113 2-Pole 3-Wire 15A 250V NEMA 6-15P

Connector 15A 125V or 250V
50011 2-Pole 2-Wire 15A 125V NEMA 1-15R
50012 2-Pole 3-Wire 15A 125V NEMA 5-15R 50012
50013 2-Pole 3-Wire 15A 250V NEMA 6-15R

50011

Black Belly Is Available 50013
