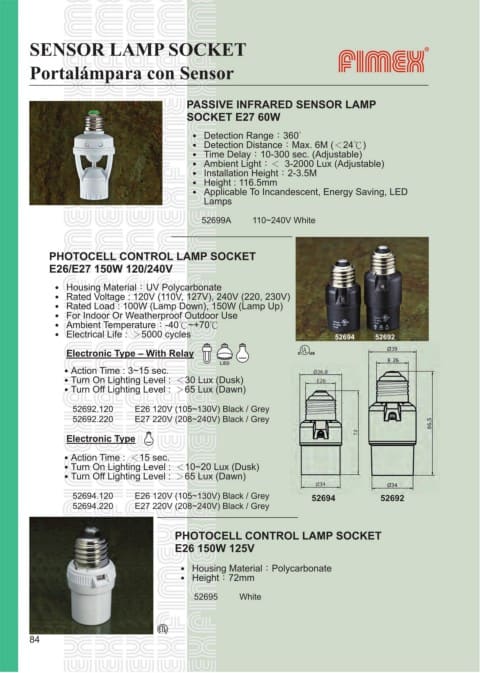

SENSOR LAMP SOCKET

Portalámpara con Sensor

PASSIVE INFRARED SENSOR LAMP
SOCKET E27 60W

˙ Detection Range：360˚
˙ Detection Distance：Max. 6M (＜24℃)
˙ Time Delay：10-300 sec. (Adjustable)
˙ Ambient Light：＜ 3-2000 Lux (Adjustable)
˙ Installation Height：2-3.5M
˙ Height : 116.5mm
˙ Applicable To Incandescent, Energy Saving, LED
Lamps

52699A 110~240V White

PHOTOCELL CONTROL LAMP SOCKET

E26/E27 150W 120/240V

˙ Housing Material：UV Polycarbonate
˙ Rated Voltage : 120V (110V, 127V), 240V (220, 230V)
˙ Rated Load : 100W (Lamp Down), 150W (Lamp Up)

˙ For Indoor Or Weatherproof Outdoor Use
˙ Ambient Temperature：-40℃~+70℃
˙ Electrical Life : ＞5000 cycles 52694 52692
Electronic Type – With Relay

˙Action Time : 3~15 sec.
˙Turn On Lighting Level : ＜30 Lux (Dusk)
˙Turn Off Lighting Level : ＞65 Lux (Dawn)

52692.120 E26 120V (105~130V) Black / Grey
52692.220 E27 220V (208~240V) Black / Grey

Electronic Type

˙Action Time : ＜15 sec.
˙Turn On Lighting Level : ＜10~20 Lux (Dusk)
˙Turn Off Lighting Level : ＞65 Lux (Dawn)

52694.120 E26 120V (105~130V) Black / Grey 52694 52692
52694.220 E27 220V (208~240V) Black / Grey

PHOTOCELL CONTROL LAMP SOCKET
E26 150W 125V

˙ Housing Material：Polycarbonate
˙ Height：72mm

52695 White
