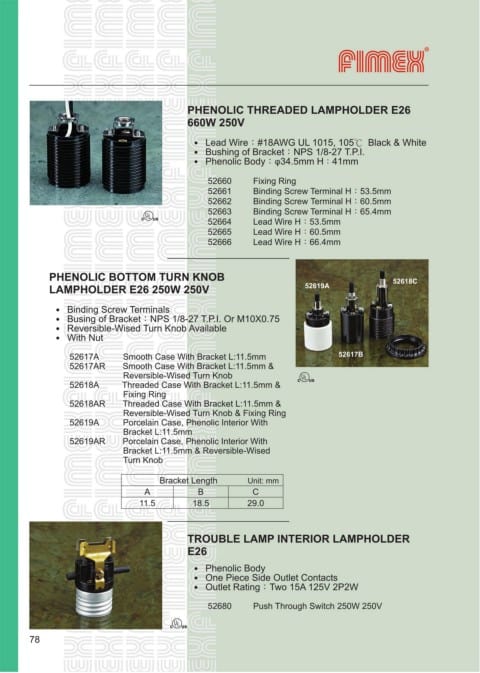

PHENOLIC THREADED LAMPHOLDER E26
660W 250V

˙ Lead Wire：#18AWG UL 1015, 105℃ Black & White
˙ Bushing of Bracket：NPS 1/8-27 T.P.I.
˙ Phenolic Body：φ34.5mm H：41mm

52660 Fixing Ring
52661 Binding Screw Terminal H：53.5mm
52662 Binding Screw Terminal H：60.5mm
52663 Binding Screw Terminal H：65.4mm
52664 Lead Wire H：53.5mm
52665 Lead Wire H：60.5mm
52666 Lead Wire H：66.4mm

PHENOLIC BOTTOM TURN KNOB 52618C

LAMPHOLDER E26 250W 250V 52619A

˙ Binding Screw Terminals
˙ Busing of Bracket：NPS 1/8-27 T.P.I. Or M10X0.75
˙ Reversible-Wised Turn Knob Available
˙ With Nut

52617A Smooth Case With Bracket L:11.5mm 52617B
52617AR Smooth Case With Bracket L:11.5mm &
Reversible-Wised Turn Knob
52618A Threaded Case With Bracket L:11.5mm &
Fixing Ring
52618AR Threaded Case With Bracket L:11.5mm &
Reversible-Wised Turn Knob & Fixing Ring
52619A Porcelain Case, Phenolic Interior With
Bracket L:11.5mm
52619AR Porcelain Case, Phenolic Interior With
Bracket L:11.5mm & Reversible-Wised
Turn Knob

Bracket Length Unit: mm
A B C
11.5 18.5 29.0

TROUBLE LAMP INTERIOR LAMPHOLDER
E26

˙ Phenolic Body
˙ One Piece Side Outlet Contacts
˙ Outlet Rating：Two 15A 125V 2P2W

52680 Push Through Switch 250W 250V

78
