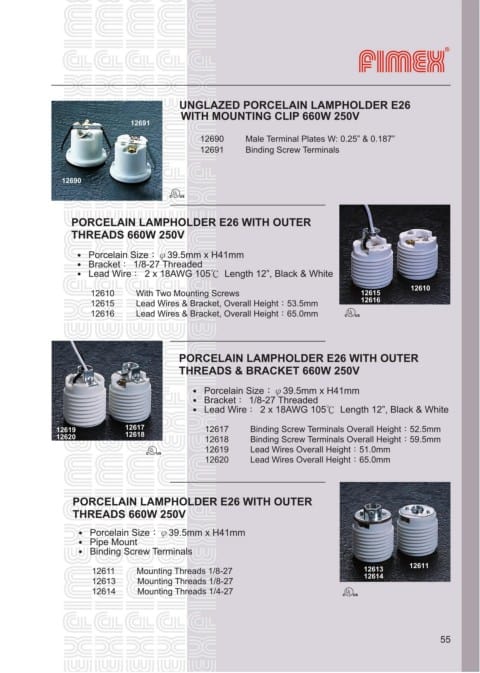

Page 57 - Fimex Taiwan Ltd_Electrical Material-American
P. 57
UNGLAZED PORCELAIN LAMPHOLDER E26
WITH MOUNTING CLIP 660W 250V
12691
12690 Male Terminal Plates W: 0.25” & 0.187”
12691 Binding Screw Terminals
12690
PORCELAIN LAMPHOLDER E26 WITH OUTER
THREADS 660W 250V
․ Porcelain Size：φ39.5mm x H41mm
․ Bracket： 1/8-27 Threaded
․ Lead Wire： 2 x 18AWG 105℃ Length 12”, Black & White
12610
12610 With Two Mounting Screws 12615
12615 Lead Wires & Bracket, Overall Height：53.5mm 12616
12616 Lead Wires & Bracket, Overall Height：65.0mm
PORCELAIN LAMPHOLDER E26 WITH OUTER
THREADS & BRACKET 660W 250V
․ Porcelain Size：φ39.5mm x H41mm
․ Bracket： 1/8-27 Threaded
․ Lead Wire： 2 x 18AWG 105℃ Length 12”, Black & White
12619 12617 12617 Binding Screw Terminals Overall Height：52.5mm
12620 12618 12618 Binding Screw Terminals Overall Height：59.5mm
12619 Lead Wires Overall Height：51.0mm
12620 Lead Wires Overall Height：65.0mm
PORCELAIN LAMPHOLDER E26 WITH OUTER
THREADS 660W 250V
․ Porcelain Size：φ39.5mm x H41mm
․ Pipe Mount
․ Binding Screw Terminals
12611
12611 Mounting Threads 1/8-27 12613
12613 Mounting Threads 1/8-27 12614
12614 Mounting Threads 1/4-27
55
