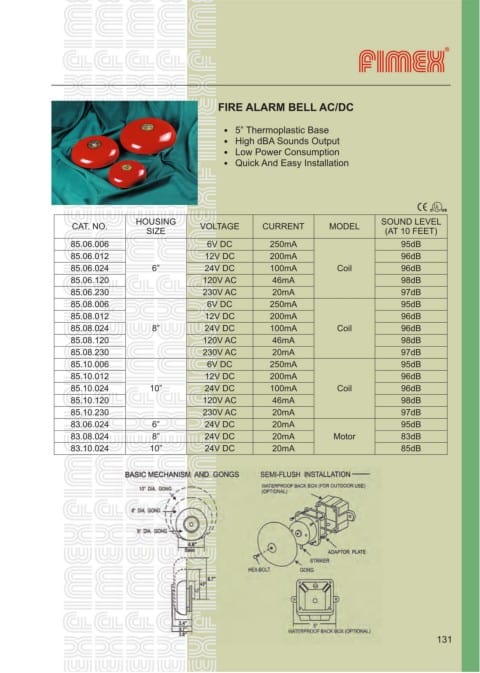

FIRE ALARM BELL AC/DC

․ 5” Thermoplastic Base
․ High dBA Sounds Output
․ Low Power Consumption
․ Quick And Easy Installation

HOUSING SOUND LEVEL
CAT. NO. VOLTAGE CURRENT MODEL
SIZE (AT 10 FEET)
85.06.006 6V DC 250mA 95dB
85.06.012 12V DC 200mA 96dB
85.06.024 6” 24V DC 100mA Coil 96dB
85.06.120 120V AC 46mA 98dB
85.06.230 230V AC 20mA 97dB
85.08.006 6V DC 250mA 95dB
85.08.012 12V DC 200mA 96dB
85.08.024 8” 24V DC 100mA Coil 96dB
85.08.120 120V AC 46mA 98dB
85.08.230 230V AC 20mA 97dB
85.10.006 6V DC 250mA 95dB
85.10.012 12V DC 200mA 96dB

85.10.024 10” 24V DC 100mA Coil 96dB
85.10.120 120V AC 46mA 98dB
85.10.230 230V AC 20mA 97dB
83.06.024 6” 24V DC 20mA 95dB
83.08.024 8” 24V DC 20mA Motor 83dB
83.10.024 10” 24V DC 20mA 85dB

131
