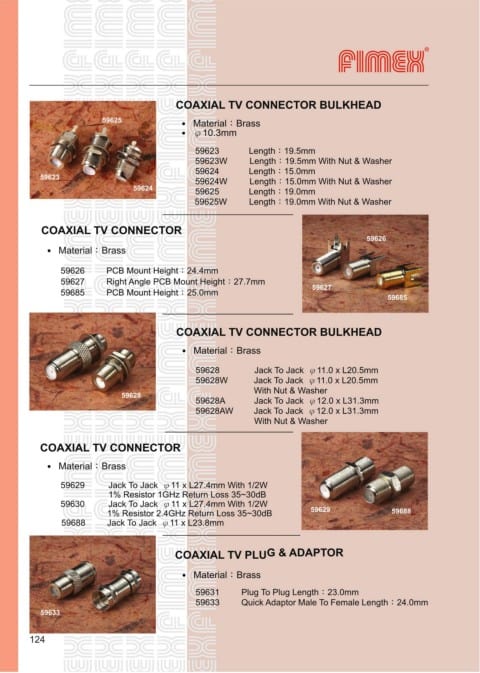

COAXIAL TV CONNECTOR BULKHEAD

59625 ․ Material：Brass
․ φ10.3mm

59623 Length：19.5mm
59623W Length：19.5mm With Nut & Washer
59624 Length：15.0mm
59623 59624W Length：15.0mm With Nut & Washer
59624 59625 Length：19.0mm
59625W Length：19.0mm With Nut & Washer

COAXIAL TV CONNECTOR
59626
․ Material：Brass

59626 PCB Mount Height：24.4mm
59627 Right Angle PCB Mount Height：27.7mm
59685 PCB Mount Height：25.0mm 59627
59685

COAXIAL TV CONNECTOR BULKHEAD

․ Material：Brass

59628 Jack To Jack φ11.0 x L20.5mm
59628W Jack To Jack φ11.0 x L20.5mm
With Nut & Washer
59628
59628A Jack To Jack φ12.0 x L31.3mm
59628AW Jack To Jack φ12.0 x L31.3mm
With Nut & Washer

COAXIAL TV CONNECTOR

․ Material：Brass

59629 Jack To Jack φ11 x L27.4mm With 1/2W
1% Resistor 1GHz Return Loss 35~30dB
59630 Jack To Jack φ11 x L27.4mm With 1/2W
1% Resistor 2.4GHz Return Loss 35~30dB 59629 59688
59688 Jack To Jack φ11 x L23.8mm

COAXIAL TV PLU G & ADAPTOR

․ Material：Brass

59631 Plug To Plug Length：23.0mm
59633 Quick Adaptor Male To Female Length：24.0mm
59633
